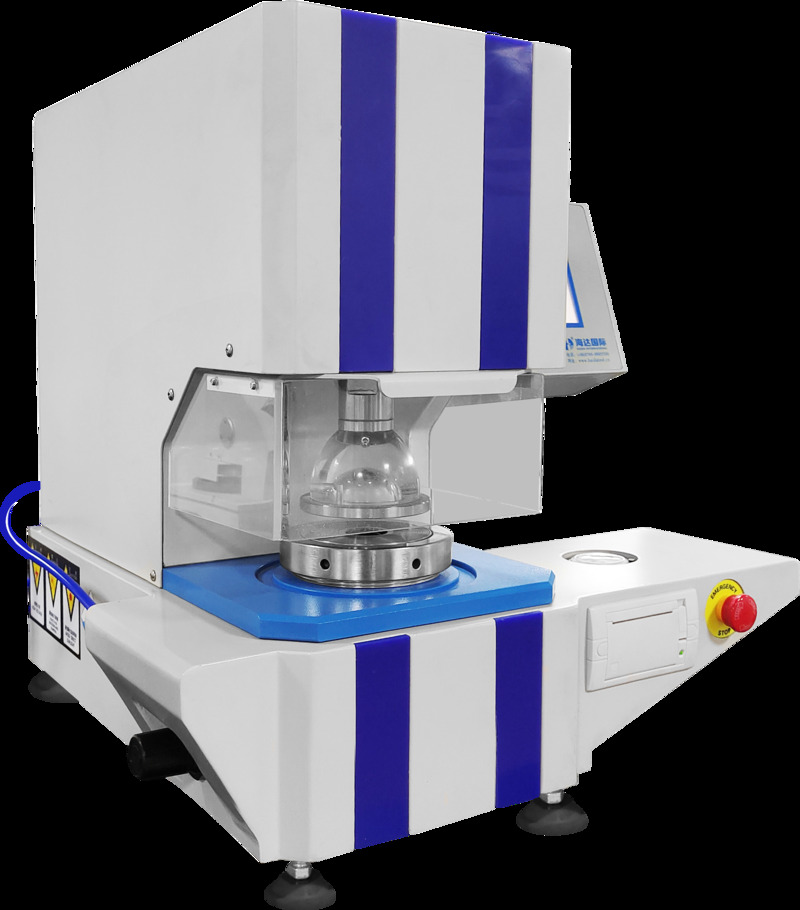

Haida Automatic Paper Bursting Strength Testing Machine
The application:
Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Uses: Bursting strength tester is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
Main technical parameters:
| Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
| Unit (switchable) | Kpa, psi, kg/cm^2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method & Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/8 HP |
| Operation Method | Automatic |
| Dimension (L×W×H) | 445×425×525 mm |
| Weight | Approx. 50 kg |
| Power | AC220± 10%, 50 Hz |
| Power Capacity | 120W |
| Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
| Optional Configuration | Printer, Air Pump |
Design standard:JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
The Character:
it is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packaging & Shipping
Test machine are covered with air bubble film before put them into the wooden case.There are different modes of transportation to choose from: sea, air and land.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
