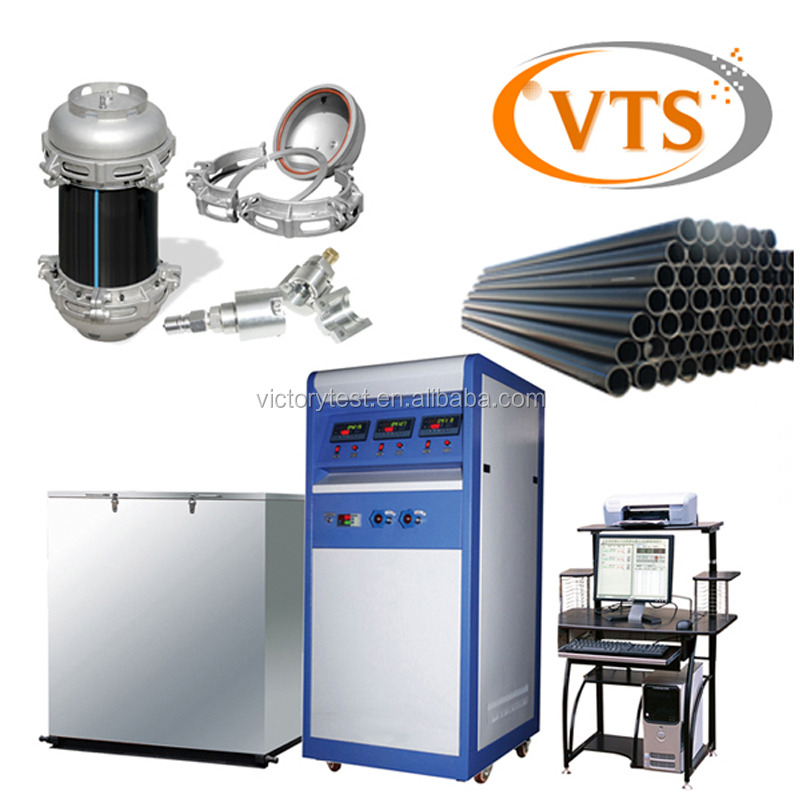

Hydrostatic Pressure Testing Machine + Pipe Burst Carbon Steel Plastic Pipe Hydrostatic Pressure Tester

Plastic Pipe Hydrostatic Pressure and Burst Testing Machine

(10MPa, 16MPa, 25MPa, 3 stations, room temperature- 95℃,digital +computer double control)

XGNB Series Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC, PE, PPR, ABS and other plastic pipes. It is under the standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.

2. Main technical parameters

2.1. Pressure range:0-16MPa (160Bar)

2.2. Resolution of pressure testing: 0.001MPa

2.3. Accuracy: Better than ±1%

2.4. Testing pipe: φ20mm-φ630mm

2.5. Test station: 3 stations (standard supply) or even more

2.6. Constant temp. range: room temperature~95℃

2.7. Temp. Accuracy: ±0.1℃

2.8. Temp. evenness: ±1 ℃

2.9. Time range: 1s-8760h

2.10. Time accuracy: ≤±0.1%

2.11. Power supply: 3 phase, 380v±10%, 50Hz

3. Work principle (test three pipes at the same time)

4. End caps

5. Water tank

6. Test software
