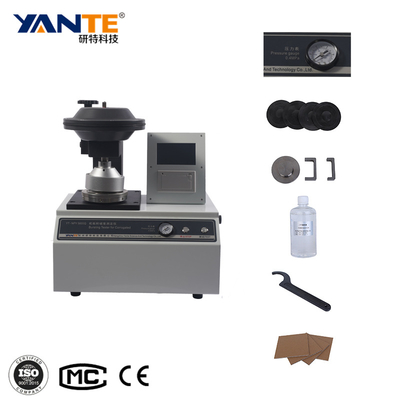

YT-NPY5600Q YT-NPY5600Q Paper Cardboard Film Burst Pressure Force Tester FB Paper Testing Machine

1 Unit
MOQ
YT-NPY5600Q YT-NPY5600Q Paper Cardboard Film Burst Pressure Force Tester FB Paper Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM, ODM, OBM
Place Of Origin: Zhejiang, China
Brand Name: Yante
Model Number: YT-NPY5600Q
Power: Electronic
Measuring Range: 250~5600kPa
Compression Rate: 170±15ml/min
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Yante
Model Number: YT-NPY5600Q
Payment & Shipping Terms
Packaging Details: Ply-wooden cases, inner plastic films wrapped
Product Description
Product Overview
Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.
Features At A Glance

The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range. Pneumatic clamping system, one key test. ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data. Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued. Over-range automatic reset. Three units can be selected kPa, kgf/cm2, Psi, can be switched at will Communication with computer software (purchase separately)
Details Images
Application Range
Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials.
Execute Standard
GB/T 1539，QB/T 2679.8，GB/T 6545，ISO 2759
Sales And Service Network
Product Paramenters
No.
Parameter item
Technical index
1
Power Supply
AC100V±10% or AC220V±10%，(50/60)Hz，150W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Measuring range
250～5600kPa
4
Indication error
±0.5%(Range 5%～100%)
5
Resolution
1kPa
6
Refueling speed
170±15ml/min
7
Air pressure adjustment
0.4MPa
8
Hydraulic system tightness
Upper limit of measurement，1min Pressure drop＜10％Pmax
9
Upper clamp ring aperture
31.5±0.05 mm
10
Lower clamp ring aperture
31.5±0.05 mm
11
Print
Built-in thermal printer
12
Communication Interface
RS232(Default) (USB, WIFI optional)
13
Dimension
470×315×520 mm
14
Net Weight
56kg around
