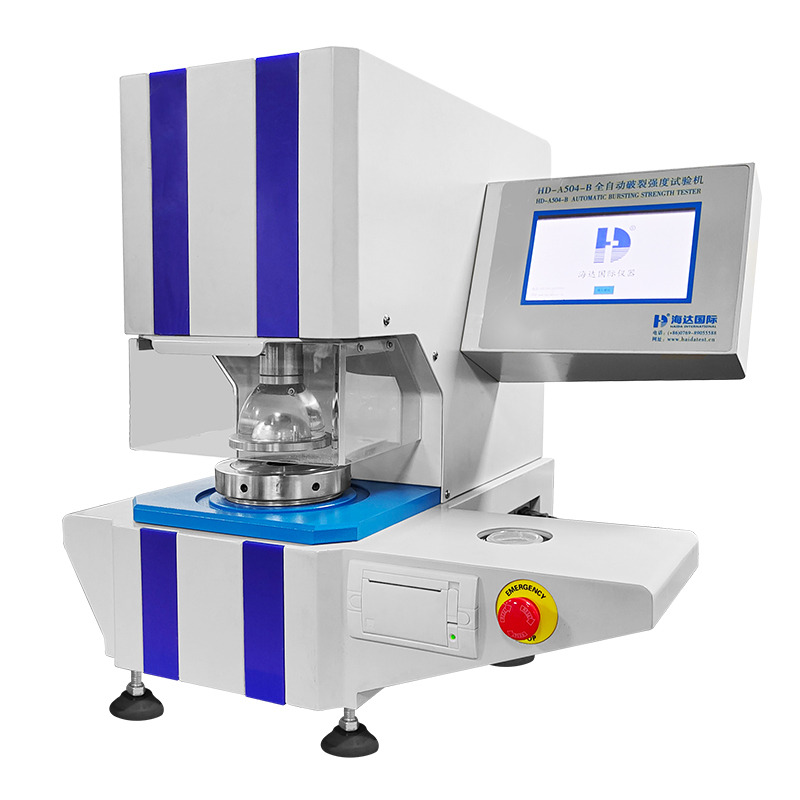

Packaging bursting test machine is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
|
Capacity |
0-15kgf/cm2 for paper 5~45 Kg/ cm2 for paperboard |
|
Control mode |
Digital display |
|
Unit |
Kpa, psi (Lbs/in2), kgf/cm2 |
|
Load Resolution |
0.001 kgf/cm2 |
|
Material |
SS button, SUS # 304 clamp ring |
|
Sensing method |
Pressure Transmitter |
|
Indicating method |
Digital display |
|
Operation method |
Automatic |
|
Hydraulic oil |
100% silicone oil |
|
Ring Material |
Stainless Steel SUS304 |
|
Pressure speed |
95 ml/min (Paper); 170±15ml/min (Paperboard) |
|
Size of clamp ring |
Φ31.5±0.1 |
|
Motor |
90W governor motor |
|
Dimension (L×W×H) |
445mm×425mm×525mm |
|
Weight |
Approx. 75kg |
|
Power |
1, AC220± 10%, 50Hz |
|
Accessories |
One piece rubber membrane One piece wrench 10pcs aluminum foils 250ml silicone oil |
3.Standards:
ISO 2759 GB/T 1539 ISO 2758 GB/T 454
4.Standard Configuration:
Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
