DRK 530*360*550 Direct Factory Tester Mullen Paperboard Paperboard Strength Digital Exploded Testing Machine

1.0 Sets
MOQ
DRK 530*360*550 Direct Factory Tester Mullen Paperboard Paperboard Strength Digital Exploded Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Place Of Origin: Shandong, China
Brand Name: DRK
Model Number: DRK109
Power: Pneumatic
Power Supply: 220V 50Hz
Color: White
Weight: 75kg
Size: 530*360*550
Port: Qingdao Port
Package: Wooden Case
Control: Computer System
Basic Infomation
Place of Origin: Shandong, China
Brand Name: DRK
Model Number: DRK109
Payment & Shipping Terms
Product Description
Product Description
Product description：

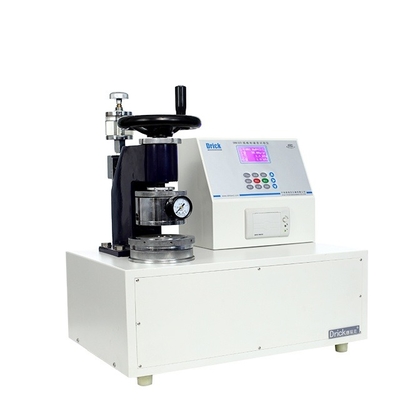

The DRK109 paperboard bursting tester is an international universal Mullen type instrument which is the basic instrument for
testing the strength performance of paper and paperboard. This instrument is simple to operate, reliable in performance, and
advanced in technology. It is a scientific research unit, paper manufacturer, and packaging equipment. Ideal equipment
indispensable for industry and quality inspection department.

Features：
1. Full computer control technology, open structure, high degree of automation, simple and convenient operation, safe and
reliable.
2. Fully automatic measurement, intelligent calculation function, with differential pressure adjustment system
3. Independently researched and developed software, the burst tester automatically measures, counts, and prints the test results,
and has the function of data storage;
4. High-speed micro printer, high-speed printing, easy to use, low failure;
5. Modern design concept of electromechanical integration, hydraulic system, powerful function, compact structure, beautiful appearance and easy maintenance;
6. During the experiment, real-time display of data force value, experimental change curve and other information.

Applications：
It is used to test all kinds of cardboard and single-layer and multi-layer corrugated cardboard. It can also be used to test the breaking strength of non-paper materials such as silk and cotton cloth.

Technical standard：
ISO2759 "Determination of Bursting Resistance of Paperboard"
QB/T1057 "Paper and Cardboard Burst Tester"
GB1539 "Testing Method for Bursting Resistance of Cardboard"
GB/T6545 "Determination of Bursting Strength of Corrugated Board"
GB/T454 "Determination of Bursting Strength of Paper"

Technical parameter：
1. Measuring range: 250～6000Kpa;
2. The clamping force between the upper and lower chuck: >690 Kpa;
3. Pressurized oil delivery speed: 170±15ml/min;
4. Film resistance: 170-220Kpa when the bulge height is 10mm; when the bulge height is 18mm, 250-350Kpa;
5. The accuracy of the whole machine: Class 1 (resolution: 0.1 Kpa);
6. Accuracy of indication: ±0.5%F.S;
7. Hydraulic system tightness: at the upper limit of measurement, the pressure drop within 1 minute is less than 10% Pmax;
8. Specimen clamp ring size: upper and lower clamp ring aperture φ31.5±0.05mm;
9. Dimensions: 530×360×550mm;
10. Motor power: 90W;
11. Power supply: 220V±10% 50Hz;
12. Mass: 75kg.

Product configuration：
One host, one power cord, four rolls of printing paper
