WDW computer-control Universal Material Testing Machine
|
series |
WDW series microcomputer controlled electronic universal testing machine |
||||
|
model |
WDW-01,02,05,1,2,5 |
WDW-02,05, 1,2,5,10 |
WDW-5,10,20,30,50 |
WDW-100 |
WDW-200,300/500,600 |
|
Structure type |
Single arm type |
Small door type (desktop) |

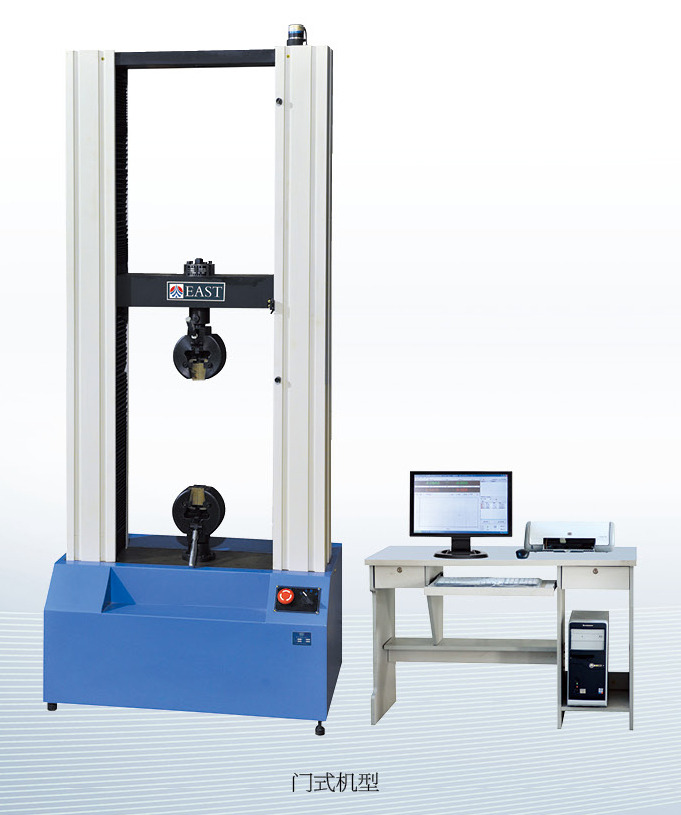

Door type |
||
|
basic configuration |
Precision ball screw, servo speed control motor and speed control system, three closed loop automatic control system |
||||
|
Maximum test force (KN) |
0.1,0.2,0.5,1,2,5 |
0.2,0.5,1,2,5,10 |
5,10,20,30,50 |
100 |
200,300/500,600 |
|
Test force measurement range |
0.2%~100%FS |
||||
|
Maximum error of test force indication |
Within ±0.5% of the indicated value |
||||
|
Deformation measurement range |
0.2%~100%FS |
||||
|
Deformation resolution |
0.01mm |
||||
|
Large deformation measurement range (optional) |
10~500mm |
||||
|
Large deformation indication error |
Within ±0.5% of the indicated value |
||||
|
Displacement indication error |
Within ±0.5% of the indicated value |
||||
|
Speed regulation range of test speed |
0.05~500mm/min |
0.05~500mm/min |
0.05~250mm/min |
||
|
Test speed control accuracy |
±0.5% |
||||
|
Effective stretching space |
0~650mm (large space can be customized according to user needs) |
||||
|
Effective test width |
—— |
350mm |
410mm |
420mm/500mm |
550mm/600mm |
|
Stretching fixture configuration |
stretching fixture 1 set |
lever type tensile fixture 1 set(hydraulic clamping fixture can be used for large-size testing machine) |
|||
|
Motor Power |
220V,0.5kw |
220V,0.8kw |
220V,1.2kw |
220V,1.5kw |
220V,3.0kw/4.5 kw |
|
Host machine size (mm) |
400×300×1200 |
620×370×1240 |
700×410×1680 |
950×530×2100 |
1000×600×2300 1000×630×2400 |
Our products are repaired free of charge within one year and are maintained for life.
