Introduction

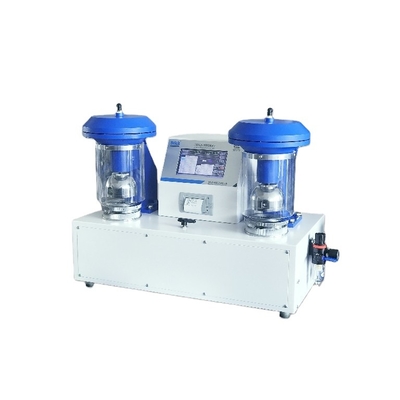

109C Paper and Paperboard Bursting Strength Tester is the basic instrument to test the strength performance of paper and paperboard.
It is a kind of international universal Mullen instrument.
This instrument is easy to operate, have reliable performance, and advanced technology. It is an ideal testing equipment for scientific research units, paper mills, packaging industry, quality inspection department.
Features
1. Computer control systerm, open architecture, highly automatic program, to ensure the high accuracy, and convenience to operate.
2. Automatic measurement, Intelligent calculating functions.
3. Equipped with micro-printer, convenient to get the test result.
4. Mechatronics modern design concept, hydraulic system, compact structure, nice appearance, easy maintenance.
5. Self-developed software, having automatical measure, statistics, print test results, data save function.
Application
It is applicable to a various of single paper and thin cardboard and multi-player corrugated cardboard, it is also used in silk, cotton and other non-paper products bursting strength test.
Technical standards
ISO2759 <paperboard-determination of bursting strength>
QB/T1057 <paper and paperboard bursting tester>
GB1539 <paperboard –determination of bursting tester>
GB/T 6545 <corrugated board-determination of bursting strength>
GB/T 454 <paper-determination of bursting strength>
Product Parameter
|
Item |
Paper Test |
Cardboard Test |
|
|
Measuring range |
10~2000Kpa |
10~6000Kpa |
|
|
Pressure between platen |
>430 Kpa |
>690 Kpa |
|
|
Diaphragm resistance |
Protruding 10mm, 20-40 Kpa |
Protruding 10mm, 170-220 Kpa; protruding 18mm, 250-350 Kpa |
|
|
Accuracy |
1grade (resolution: 0.1 Kpa) |
||
|
Value accuracy |
±0.5%F.S |
||
|
Hydraulic system leak |
in the measurement of upper limit value, 1min pressure drop <10%Pmax |
||
|
Sample clip ring size |
Upper platen aperture dia. φ30.5±0.05mm Lower platen aperture dia. φ33.5±0.05mm |
Upper and lower platen aperture dia. φ31.5±0.05mm |
|
|
Motor power |
90W |
||
|
Power |
700mmx400mmx550mm |
||
|
Dimension |
220V±10% 50Hz |
||
Main fixtures
Mainframe, 4 rolls of printer paper, certificate of quality, operational manual, power line
