Introduction:

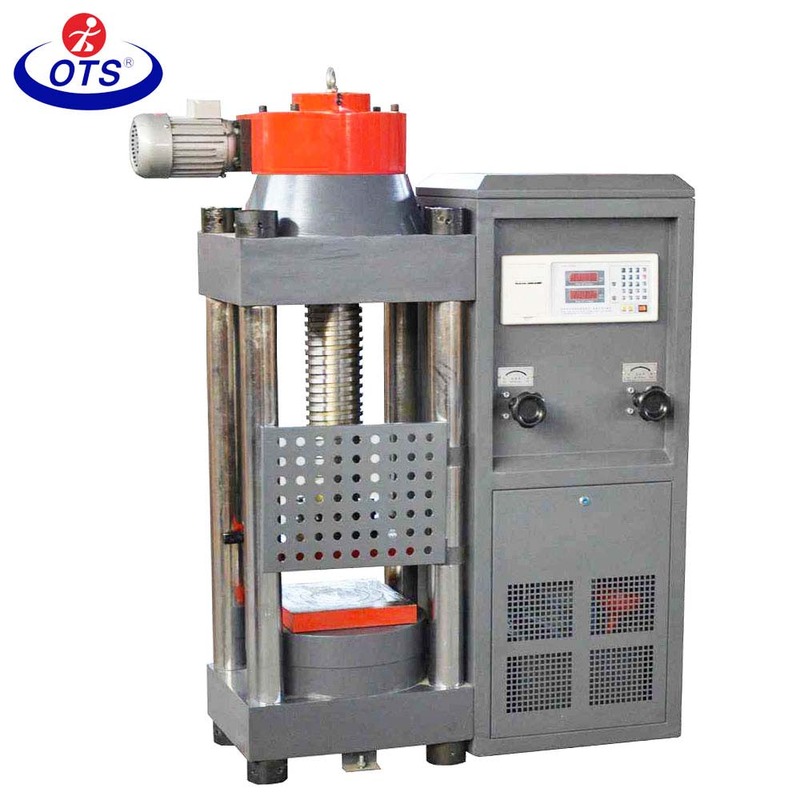

Fast Delivery Compression Test Equipment,Concrete Testing Machine adopts hydraulic system host and set in the integration of structure form, structure is compact, small and exquisite. Adopts hydraulic loading, electronic load, display the loading rate, peak holding, etc, and is equipped with a micro printer. The machine is suitable for cement compressive strength, building mortar compressive strength test, can also be used for the four-point bending test of concrete.
Hydraulic System:
Hydraulic oil in this tank through motor driven high pressure pump into the oil, the oil flows back to the valve and into the cylinder. Force measuring instrument analysis of data gathered by sensors, display all the time force value, the operator through the oil valve to control flow, realize the test force rate of speed.
The Force Measurement System:
Manually adjust back to the oil valve, concise and flexible operation;
Has the largest load peak value holding function;
Has the function of loading rate, dynamic display;
Has the test date, serial number, failure load, compressive strength and other randomized trials report.
Safety Protection Device:
When the test force by more than 3% of the maximum test force, overload protection, the oil pump motor downtime.
Technical Parameters:
|
Name |
Fast Delivery Compression Test Equipment,Concrete Testing Machine |
|
The maximum test force |
1000KN |
|
Test force range |
1%-100% |
|
Test force shows value relative error |
< ±1% of the shows value |
|
The Max. spacing between upper and lower pressure plate |
230mm |
|
Piston stroke |
80mm |
|
Hydraulic pump rating pressure |
25MPa |
|
The pressure plate size |
Φ155mm |
|
Piston diameter |
φ125mm |
|
Dimension |
850*620*1340mm |
|
Power of motor |
0.75kW |
|
Weight |
500kg |
Main Configuration :
|
Name |
Qty |
Note |
|
Tester |
1set |
Including motor, oil pump, the valve |
|
Force measuring instrument |
1set |
On the host, including the micro printer |
|
Pressure sensor |
1pc |
|
|
Concrete flexural assistive devices |
1set |
---------- |
|
Pressure up and down plate |
1set |
---------- |
Our Comany
OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Fast Delivery Compression Test Equipment,Concrete Testing Machine . Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation,we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) CO.,LTD
Tel: 001-612-402-1218
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Tel:+39-011-2730000
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Nanjing Branch: XIN BAO INSTRUMENT NANJING BRANCH
Tel: 025-85657886 Fax: 025-85657896
Address: Room 539, Excellence Building, 688 Zhujiang Road, Xuanwu District, Nanjing City, Jiangsu Province
Taizhou Branch: XIN BAO INSTRUMENT TAIZHOU BRANCH
Tel: 0576-88522556 Fax:0576-88522556
Address: No.68, Gaoyuan District, Jiaojiang District, Taizhou City, Zhejiang Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Tel:04-24731563 Fax:04-23804092
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
