Home /Products/Pneumatic Bursting Strength Tester/High Quality Stainless Steel Paper Mullen Strength Tester Cardboard Exploded Testing Equipment

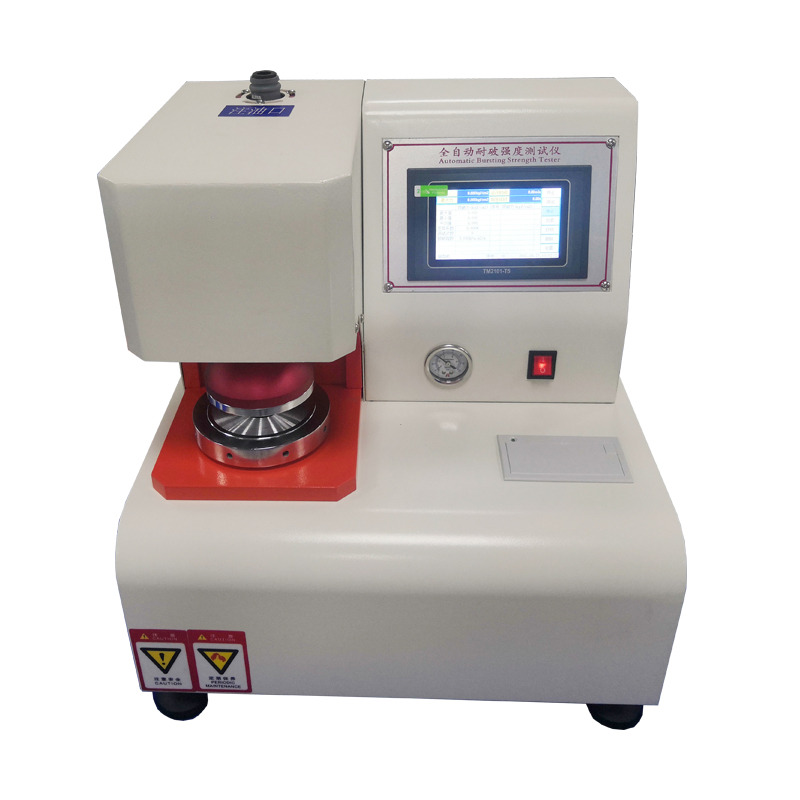

High Quality Stainless Steel Paper Mullen Strength Tester Cardboard Exploded Testing Equipment

1.0 Sets
MOQ
High Quality Stainless Steel Paper Mullen Strength Tester Cardboard Exploded Testing Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Place Of Origin: Guangdong, China
Brand Name: JINGYAN
Model Number: JY- 1007
Power: Electronic
Test Range: 250~2500 KPa
Pressure Speed: 170±15 Ml/min
Specimen Clamping Force: > 690 KPa
Motor: 1/4 HP
Dimension: 445 Mm * 425 Mm * 525 Mm
Air Pressure: 0.5 MPa - 0.7 MPa
Hydraulic Oil: Silicone Oil
Induction Method: Pressure Transducer
Clip Ring Material: Stainless Steel
Power Supply: AC220V 50HZ
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: JINGYAN
Model Number: JY- 1007
Payment & Shipping Terms
Packaging Details: Standard export wooden case
Supply Ability: 100 Set/Sets per Month
Product Description

Application :

Meet the relevant standards, the use of pneumatic clamping samples, liquid crystal display, for cardboard, corrugated cardboard and other sheet-like plate determination of the bursting.

Standard :ISO 2759 , GB/T 1539 , QB/T 1057

Test Range

250~2500kPa

Pressure Speed

170±15ml/min

Specimen Clamping Force

>690kPa

Motor

1/4HP

Dimension

445mm×425mm×525mm

Net Weight

65Kg

Air Pressure

0.5MPa-0.7MPa

voltage

120W

Power Supply

A220V±10%, 50Hz

Hydraulic oil

Silicone oil

size

430*530*520mm

Clip ring material

stainless steel
