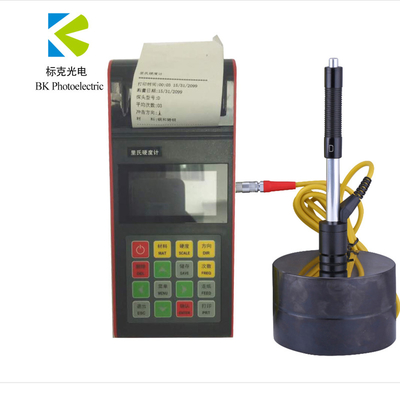

SHL-150 Portable Leeb Hardness Tester
Description
SHL-160 portable Leeb hardness tester is a new generation flagship model developed by our company. It adopts ultra-low power design concept, high-performance rechargeable battery, intelligent charge management and USB plug-and-play communication interface, and comes with embedded thermal printer, which supports instant on-site printing, meets the diverse measurement requirements, and has ultra-high Brightness display LCD screen, better meet the complex measurement environment, is the first choice for the majority of users.SHL-160 portable Leeb hardness tester is a new generation flagship model developed by our company. It adopts ultra-low power design concept, high-performance rechargeable battery, intelligent charge management and USB plug-and-play communication interface, and comes with embedded thermal printer, which supports instant on-site printing, meets the diverse measurement requirements, and has ultra-high Brightness display LCD screen, better meet the complex measurement environment, is the first choice for the majority of users.
1. Full English display, menu-driven operation.
2. Mini USB communication interface.
3. Can be equipped with 7 kinds of different impact devices, no need to recalibrate when replacing, and can automatically identify the type of impact device.
4. Supports measurement of multiple hardness systems and three intensity values.
5. It can store 450 groups, single measurement value, average value, measurement date, impact direction, times, materials, hardness system and other information.
6. It can set the upper and lower hardness values in advance, and it can automatically alarm when it exceeds the limit, which is convenient for users to need batch testing.
7. Indicating software calibration function.
8. Built-in high-performance lithium battery and charge control circuit, with long working and standby time.
9. Can be equipped with computer software, support for data query, storage, statistics and histogram display and other functions.
Indication error and repeatability
Item | Impact device type | Hardness value of standard Leeb hardness block | Indication error | Indicator repeatability |
1 | D | 760±30HLD 530±40HLD | ±5 HLD ±8 HLD | 5 HLD 8 HLD |
2 | DC | 760±30HLDC 530±40HLDC | ±5 HLDC ±8 HLDC | 5 HLD 8 HLD |
3 | DL | 878±30HLDL 736±40HLDL | ±10 HLDL | 10 HLDL |
4 | D+15 | 766±30HLD+15 544±40HLD+15 | ±10 HLD+12 | 10 HLD+12 |
5 | G | 590±40HLG 500±40HLG | ±10 HLG | 10 HLG |
6 | E | 725±30HLE 508±40HLE | ±10 HLE | 10 HLE |
7 | C | 822±30HLC 590±40HLC | ±10 HLC | 10 HLC |
General parameters
Hardness system | Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV) and Shore (HS) |
Measurement range | HLD (170 to 960), HRA (59 to 85), HRB (13 to 100), HRC (18 to 68), HB (19 to 655), HV (80 to 976), HS (32 to 100) |
Measuring direction | 360° (vertical downward, obliquely downward, horizontal, oblique upward, vertical upward) |
Measuring materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper and forged steel |
Display | LCD, 128×64 graphics dot matrix LCD |
Print function | Thermal print head, quiet, ready to print measurement results |
Printing paper | width 57.5±0.5mm, diameter 30mm |
Data storage | 373~2688 groups (impact times 32~1) |
Communication interface | standard USB2.0 |
Charging power supply | 9VDC, 220VAC |
Charging time | 4 to 5 hours |
Battery | 7.4V, lithium battery (1500mAh) |
Ambient temperature | 0~40°C |
Storage temperature | -25~70°C |
Working hours | about 300 hours |
Standard configuration
| Main part | 1 |
| D type impact device | 1 |
| Small support ring | 1 |
| Nylon Brush (I) | 1 |
| High value Leeb hardness block | 1 |
| Charger | 1 |
| Communication cable | 1 |
