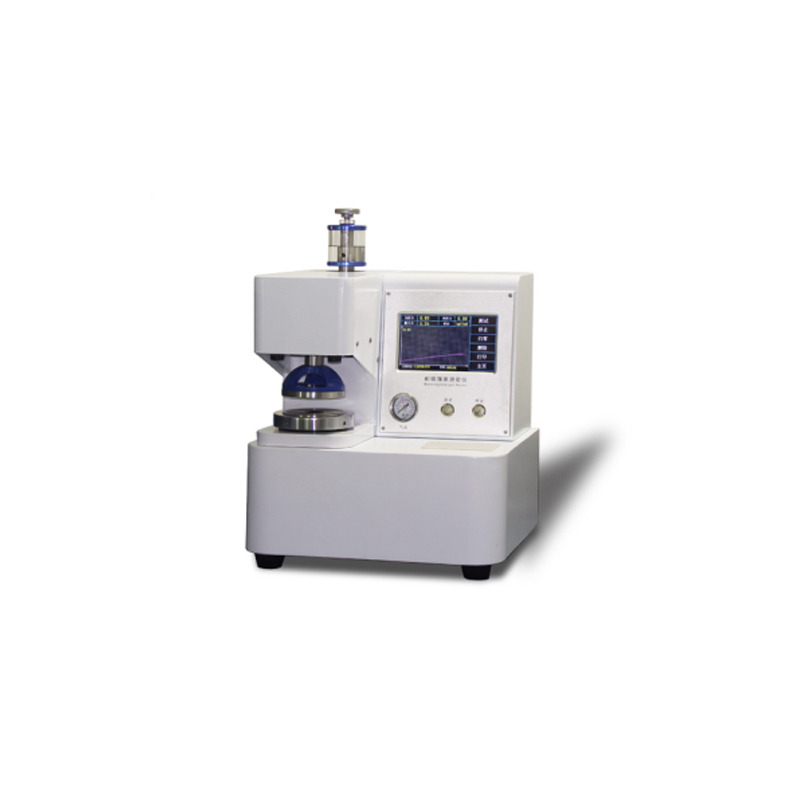

GT-N29C Bursting Strength Tester has abundant functions, such as, parameter testing, parametric transformation, parameter adjusting, parameter memory and parameter print. All are in accordance with related national standards. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.
Perfect for carton, paperboard, corrugated board, cigarette packet, beer case, shoebox, milk carton, plastic hollow plate, leather, fabric, high strength aluminum foil and copper foil.
|
Model |
GT-N29C |
|
Testing Range |
150-5600kpa |
|
Testing Accuracy |
0.01kpa |
|
Accuracy Rating |
≤0.5% |
|
Deformation Error |
≤1mm |
|
Oil Feeding Speed |
175±5ml/min |
|
Dia. of Upper Plate |
31.5±0.1mm |
|
Dia. of Lower Plate |
31.5±0.1mm |
|
Intensity of Pressure (Rubber Diaphragm) |
170-220kpa, when it at 10±0.2mm |
|
Holding Force |
0-1200kpa (adjustable) |
|
Units |
kpa, kg/cm2, lb/in2 |
|
Printer |
Thermal printer |
|
Dimension |
410×410×620mm |
|
Weight |
45kg |
0
ISO2759, GB/T 1539, GB/T 6545, TAPPI T810, JIS P8131
