Home /Products/Automatic Bursting Strength Tester/RH-TQZ500 ISO 9237 Fabric Air Permeability Tester RH-TQZ500

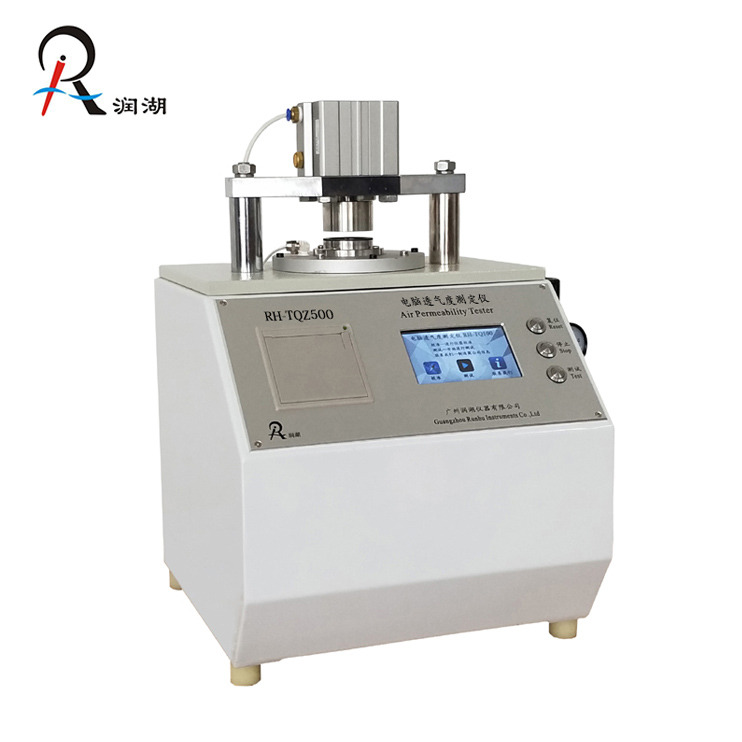

RH-TQZ500 ISO 9237 Fabric Air Permeability Tester RH-TQZ500

1.0 Sets
MOQ
RH-TQZ500 ISO 9237 Fabric Air Permeability Tester RH-TQZ500
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Customized Support: OEM, ODM, OBM
Place Of Origin: Guangdong, China
Brand Name: Runhu
Model Number: RH-TQZ500
Power: Electronic
Product Name: Air Permeability Tester
Name: Fabric Air Permeability Tester
Certificate: CE ISO
Display: Color LCD Touch Screen
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Runhu
Certification: CE ISO
Model Number: RH-TQZ500
Payment & Shipping Terms
Packaging Details: Standard export wooden case
Supply Ability: 10 Box/Boxes per Day
Product Description
Click on the picture for details ↓
Used to test the air permeability of paper, cardboard or other sheet objects. Measure Range: 0～2500mL/min, 0.01~42μm/(Pa•s)
Used to test the low air permeability of thin film, paper, and other sheet objects. Measure Range: 0.00005～0.2μm/(Pa•s)
Used to test the air permeability of battery diaphragm, mica tape, breathable film, thin film, paper and other materials and related polymer products. Measure Range: 10-10000s(Gurely)
Product Description

Introduction:

RH-TQZ500 Fabric Air Permeability Tester adopts the latest technology and the most versatile test method. It is an ideal instrument for testing the permeability of leather, cloth, fabric, paper, cardboard or other sheet. RH-TQZ500 Fabric Air Permeability Tester is a fully integrated automatic instrument. The test method takes into account various methods such as Schopper method, Bentsen method and Gurely method etc.


Working Principle:

According to the principle of pressure difference method, place the pre-processed sample between the upper and lower test heads. A constant pressure difference is formed on both sides of the sample. Under the action of pressure difference, the air flows from the upper test head through the sample to the lower test head, and the air permeability of the sample is calculated according to the area, pressure difference and flow rate of the sample.

Features:

1.Using US computer chip and stepper motor, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability. The calibration of the pressure sensor and flow is traceable.

2.The instrument uses microcomputer technology, the test process is fully automated, fast and accurate. Touch-screen display results, and data recording and processing functions, with printing output.

3.This instrument has the high superiority. It can set the higher pressure difference for the paper with the lower permeability, and set the lower pressure difference for the paper with the higher permeability, easily and accurately measure the result.

4.The test of the permeability tester is automatic and fast, and the accuracy of the test results is guaranteed. This instrument effectively avoids these problems such as mishandling or low reproduction rate of test results.

Standards:

ISO9237-1995、GB/T5453-1997、GB/T458、ISO5636/2、QB/T1667、GB/T22819、GB/T23227、ISO2965、YC/T172、GB/T12655


Technical Parameters:

Measure Range
0～400L/dm²/min
Unit
L/dm²/min 、μm/(Pa•s) 、 mm/s、 m/s
Accuracy
0.01 L/dm²/min
Linear error
<1%
Measuring Area
5cm² or 20 cm²
Pressure Difference
0.05kPa～2kPa
Weights
About 32kg
Dimensions
420×340×480 mm
Power
AC 220V±22V, 50Hz
Display
Touch screen in English display
Detailed Images

High resolution color touch screen & High precision machining

Certifications
Related Products
Our Company

About US:

Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu's main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.
Our company has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.
Our company has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Our company's philosophy is "Quality first, Customer first" that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, Australia, Russia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.
Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
