Introduction

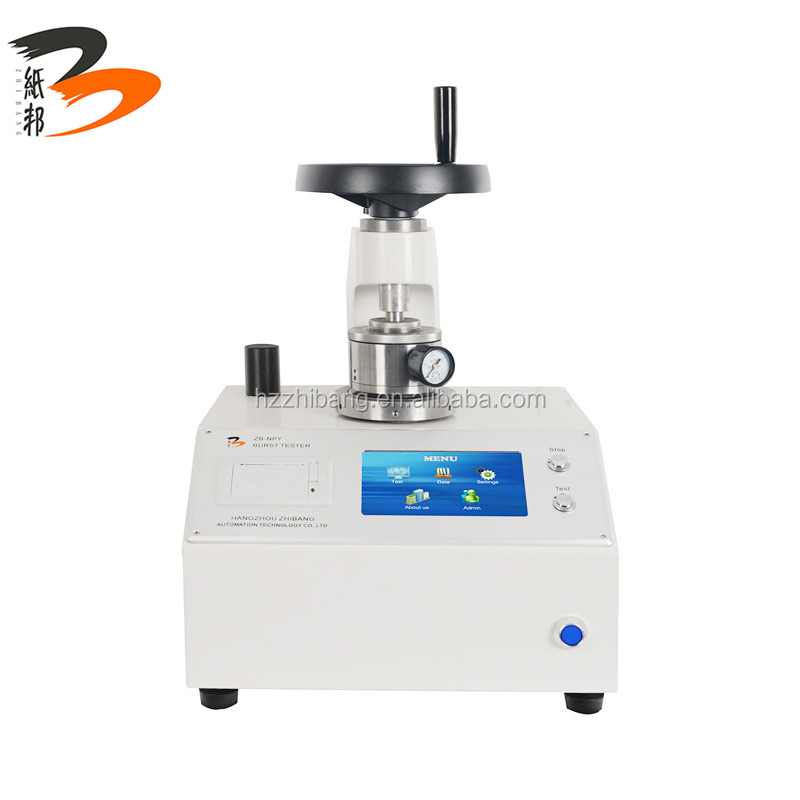

ZB-NPY5600 Cardboard bursting tester
High precision instrument sensors make it has high precision.Clamping system is manually operated, easy to operate.With data processing, the data can be directly obtained results, and can automatically reset.It has the advantage of easy operation, easy adjustment, stable performance,which make it become the essential instrument for papermaking ,packing, inspection and research.
Standards
ISO 2759 GB/T 1539
Main Features
1.Clamping system is manual, easy to operate
2.Operating system real-time display samples bursting strength.
3.Automatic measurements, statistics, print the test results, and has data storage function
4. Micro-printer, high print speed, easy to use, low failure;
5.Mechanical and electrical integration of modern design, compact structure, excellent appearance, easy maintenance
Main technical parameters
Item | ZB-NPY5600 |
Power | AC220V±10% 50HZ |
Measuring range(kPa) | 200-5600 |
Accuracy | ±0.5%F.S |
Compression speed(ml/min) | 170±15 |
Clamp pressure(kPa) | ≥700 |
Film resistance(kPa) | when the bulge height is 10mm, the pressure is 170~220kpa, when the bulge height is 18mm, the pressure is 250~350kpa |
Size and Weight
Dimension | 480*420*600mm |
Weight | 65kg |
Q1.Are you a manufacturer or a trading company ?
A: We are a professional manufacturer of test instruments. And we have our own subsidiary company for trading. All the import and export business will be handled by our own trading company.
Q2.Where is your factory located ? How can I visit there ?
A: Our factory is located in Jinan City, Shandong Province, about 1.5 hours by train from Beijing.
Q3.What’s the price of your test instruments?
A: Please contact us via trademanager or email, we will send you detailed quotation.
Q4.How to support me if i don't know how to use it?
A: Free training within the warranty by tel and mail or skype. And we have professional operation manual and operation video. We also can let our technician to customer’s company to provide training and support if customer request.
Q5. If machines wearing parts need changing, what should we do?
A:We can offer the wearing parts all the time, and offer video to show how to change it.
Q6. What's the payment terms if we want to buy the machines?
A: L/C or 100%T/T.
· One year warranty period. Maintenance and replacing the damaged parts are free of charge in warranty period.
· Lifetime Maintenance.
· Professional operation training.
· Spare parts and wearing parts will be provided for a long time.
· Calibration instruction service.
· Provide sample test service and lab data sharing service.
