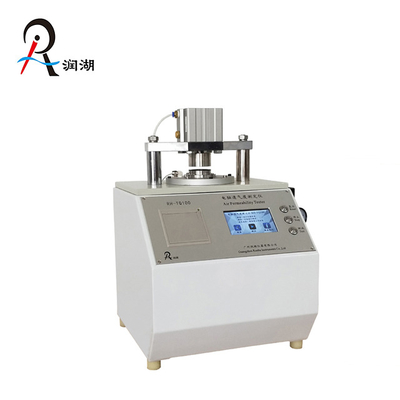

High quality air permeability tester RH-TQ100 for tissue paper air permeability RH-TQ100

1.0 Sets
MOQ
High quality air permeability tester RH-TQ100 for tissue paper air permeability RH-TQ100
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Customized Support: OEM, ODM, OBM
Place Of Origin: Guangdong, China
Brand Name: Runhu
Model Number: RH-TQ100
Power: Electronic
Product Name: Air Permeability Tester
Name: Paper Air Permeability Tester
Certificate: CE ISO
Display: Color LCD Touch Screen
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Runhu
Certification: CE ISO
Model Number: RH-TQ100
Payment & Shipping Terms
Packaging Details: Standard export wooden case
Supply Ability: 10 Box/Boxes per Day
Product Description
Click on the picture for details↓
Used to test the air permeability of leather, cloth, fabric, paper, textile or other sheet. Measure Range: 0～400L/dm²/min,mm/s
Used to test the air permeability of battery diaphragm, mica tape, breathable film, thin film, paper and other materials and related polymer products. Measure Range: 10-10000s(Gurely)
Used to test the low air permeability of thin film, paper, and other sheet objects. Measure Range: 0.00005～0.2μm/(Pa•s)
Product Description

Introduction:

RH-TQ100 Air Permeability Tester adopt high technology to measure air permeability of variety materials, it meet schopper method, bentsen method and gurely method etc.


Working Principle:
Providing the constant pressure difference between two sides of the specimen, the air permeability could be obtained by measuring the air flux through specific area in the certain time.

Features:

1.Adopt important USA chip and load sensor to make test accurately.
2.The whole test is fully automatic, fast and accurate.
3.The instrument is controlled by micro-computer, with high resolution color touch screen menu interface which is convenient for customers to operate or view test data.
4. Micro-printer, fast and clear printing.

Standards:

GB/T458,ISO5636/2,QB/T1667,GB/T22819,GB/T23227,ISO2965,YC/T172,GB/T12655


Technical Parameters:

Measure Range
0～2500mL/min，0.01~42μm/(Pa•s)，3~3000s(Gurely)
Unit
μm/(Pa•s)，CU，ml/min，s(Gurely)
Accuracy
0.01μm/Pa•s，0.06ml/min，0.1s(Gurely)
Linear Error
<1%
Measuring Area
10cm²，6.42cm² (Selectable)
Pressure Difference
0.05kPa～6kPa
Weights
30kg
Dimensions
33*34*49cm
Detailed Images

High resolution color touch screen & High precision machining
