1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sale
Product Description

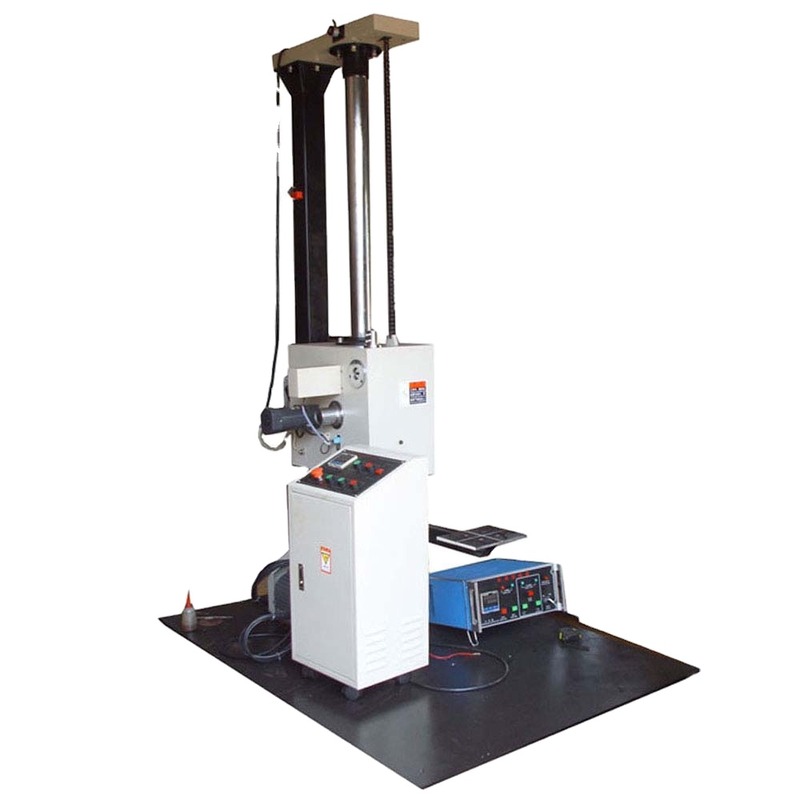

Package or Paper Carton Drop Impact Test Machine Plastic Bottles Drop Tester/Drop Test Equipment Price
Package Impact Drop Testing Machineis used to measure the dropping impact incidence when the package in using, transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Package or Paper Carton Drop Impact Test Machine Plastic Bottles Drop Tester/Drop Test Equipment Price
| Model | XB-OTS-220B |
| Display Method | Digital height indicator (optional) |
| Drop Height | 400~1300 mm |
| Single-wing Area (W×L) | 350×760 mm |
| Drop Panel Area (W×L) | 1200×1400 mm |
| Specimen Max. Size (L*W*H) | 1000*1000*800 mm |
| Specimen Max. Weight | 640 Kg |
| Outside Dimension (L*W*H) | 1400*1200*1940 mm |
| Control Box Size (L*W*H) | 350*350*1100 mm |
| Weight | 400 Kg |
| Power | 1ph, AC220V/ 50Hz |
| Transmit Approach | Electric Transmission |
| Horsepower | 1/2 HP |
| Design Criteria | ISO 2248, JIS |
* NOTE: All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
Feature:
Package or Paper Carton Drop Impact Test Machine Plastic Bottles Drop Tester/Drop Test Equipment Price
1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.
Laboratory Package Impact Test Equipment Automatic single-wing Drop Test Machine / Drop tester
Our Company
OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) CO.,LTD
Tel: 001-612-402-1218
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Tel:+39-011-2730000
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Nanjing Branch: XIN BAO INSTRUMENT NANJING BRANCH
Tel: 025-85657886 Fax: 025-85657896
Address: Room 539, Excellence Building, 688 Zhujiang Road, Xuanwu District, Nanjing City, Jiangsu Province
Taizhou Branch: XIN BAO INSTRUMENT TAIZHOU BRANCH
Tel: 0576-88522556 Fax:0576-88522556
Address: No.68, Gaoyuan District, Jiaojiang District, Taizhou City, Zhejiang Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Tel:04-24731563 Fax:04-23804092
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.ots-testequipment.com
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
