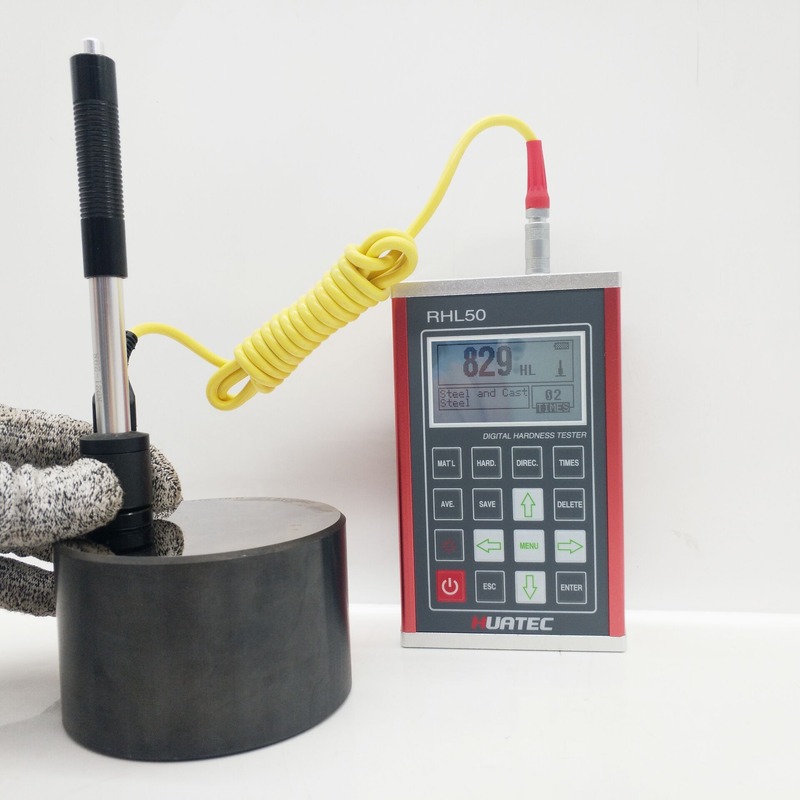

HUATEC Portable Hardness Tester RHL50 Rockwell Hardness Tester RHL-50

HUATEC Portable Hardness Tester RHL50 rockwell hardness tester

Features

LCD display of 128×64 matrix with back-light, showing all functions and parameters. Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS). English displaying and easy and convenient menu operation. Powerful PC Software available and USB 2.0 interface. 7 types of Impact Device optional, which don't need to be recalibrated when changing them. Memory of 600 groups data(impact times:32~1). Lower limit setting and sound alarm. Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece. Printer be separated from main unit and copies of testing results can be printed as required. In-built Smart Li lon rechargeable battery while USB connected and charging controlling circuit. Inbuilt function of Software Calibration. Two ways of switching off by key and automatically

Specifications

Hardness scale  HL, HB, HRB, HRC, HRA, HV, HS

Memory 48~600 groups (impact times: 32~1)

Measuring range HLD(170~960)See below table 1 and table 2

Accuracy ±6HLD (760±30HLD) error of displayed value

                6HLD (760±30HLD) repeatability of displayed value

Standard Impact Device D

Optional Impact Devices DC/D+15/G/C/DL

Max. Work piece Hardness 996HV(For Impact Devices D/DC/DL/D+15/C)

                                            646HB(For Impact Device G)

Min. Radius of Work piece (convex/concave) Rmin = 50mm (with special support ring Rmin= 10mm)

Min. Workpiece weight 2~5kg on stable support

                                     0.05~2kg with compact coupling

Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)

                                         1mm (Impact Device C)

                                         10mm (Impact Device G)

Min. thickness of hardened surface 0.8mm

Power Rechargeable Li lon battery 3.7V/600mA, 4 years life time

Continuous Working time approx. 100 h (no back light off)

Charging time 2-3.5 h

Operating temperature 0~40℃

Relative humidity ≤90%

Overall dimensions 152×84×34mm (main unit)

Weight 0.3kg (main unit)

Main Application

The assembled machinery and permanently installed parts

Die cavity of molds

Heavy work piece

Failure analysis of pressure vessel, steam turbo-generator set and other equipment

Narrow testing space where work piece installed

Bearings and other parts

Cases which require the test result with normalized original recording

Material identification of the metal material warehouse

Quick tests of large range and multipoint measuring positions for heavy workpiece

Standard delivery

Main unit

Impact Device type D

Test block with HLD value

Charger

Nylon brush

Small supporting ring

Data View Software

USB&RS232 Communication cable

Calibration Certificate

Instruction manual

Warranty card

Carrying case

Optional accessories

Optional Impact Devices DC/D+15/G/C/DL

Normal and special type support rings (14pcs)

Other test block (High, medium and low value))

Printer

Impact body

Impact ball tip

Tools for changing the ball tip
