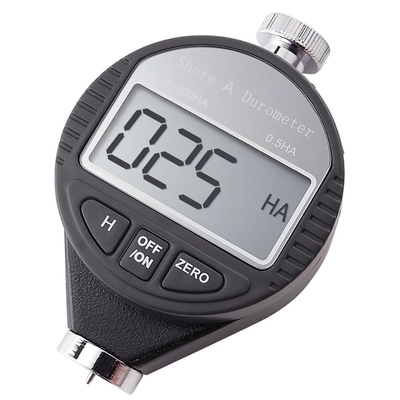

Shore Digital hardness testers are used to measure the hardness of rubber and plastics according to ISO 868-1986 and ISO 7619 and can be use as portable or desktop. It has 8.1N total measure force, 1kg outside pressure, pressure needle top cone angle of 35°, 2.5mm needle length, 0~100HA dial scale and and features large LCD display for easy reading.
It corresponds and meet the rigorous standards of ISO 868-1986 for Plastics and Rigid rubber and ISO 7619 Rubber in measuring indentation's hardness as well as GB/T 531.1-2008 standard. Particularly in the materials technology hardness plays a huge role. The measured hardness of a body makes possible conclusions on its characteristics e.g. about how quickly it breaks or is being scratched.
Type A durometers is applicable to test the penetration medium hardness of rubber, plastic, leather, multi-grease, wax, etc.
NOTE:
A minimum thickness of 6mm as sample test probes is recommended for
measurement's optimal results (if its less you may add more layer but
should be not more than 3 layers) and measuring point of at least
18mm distance from the outside edges.
It is recommended that measurements be made with the type D
durometer when the value is above 90 HA
Wide measuring range with high resolution and ease of operation
Hold Function, holds measured value in test
With Zero setting
Clear test value
Dial Scale is 1-100HA
High grade probe with 0-2.5mm Pointer journey
Stress at the end of pointer : 8.1N
Small in the dimension, lightweigt and can easily be transported
35º included angle with 0.5HA resolution
Delivers ultra accurate reading with no guessing error
Easy to read large LCD display
Battery operated
Passed and conforms with ISO 868-1986 & ISO 7619 international standards
Comply with GB/T 531.1-2008 standard
Maintenance-free digital display
With CE Marking, conforms with European health & safety requirement
Resolution : 0.5HA
Total measure force : 8.1N
Outside pressure : 1kg
Pressure needle top cone angle of 35°
Needle length : 2.5mm
Flat cone point : φ0.79mm diameter
Dial Scale : 0~100HA
On / Off Switch
1 x Shore A Durometer
1 x Hard carrying case with hardened foam for maximum shock absorption while in transport
