Home /Products/Ball Bursting Strength Tester/Wood Based Panel Tester Static Bending Strength And Elastic Modulus Testing Machine MWD-10A

Wood Based Panel Tester Static Bending Strength And Elastic Modulus Testing Machine MWD-10A

1.0 Sets
MOQ
Wood Based Panel Tester Static Bending Strength And Elastic Modulus Testing Machine MWD-10A
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Shandong, China
Brand Name: ZBT
Model Number: MWD-10A
Power: Electronic
Model: MWD-10A MWD-50A
Maximum Test Force: 10kn 50kn
Measurement Range: 2% - 100% Of The Maximum Test Force (optional 0.4% - 100%)
Accuracy Of Test Force: Better Than ± 1% Of The Indicated Value (± 0.5% Is A Special Choice)
Test Speed: 0.05-500mm/min Stepless Speed Regulation Within The Range
Speed Accuracy: Better Than ±1%
Tensile Space: 600mm(Maximun Up To 1200mm)
Dimensions: 660*420*1700mm 840*600*1850mm
Weight: 380kg 550kg
Basic Infomation
Place of Origin: Shandong, China
Brand Name: ZBT
Model Number: MWD-10A, MWD-10A MWD-50A
Payment & Shipping Terms
Packaging Details: Export Fumigation packaging
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Products Description

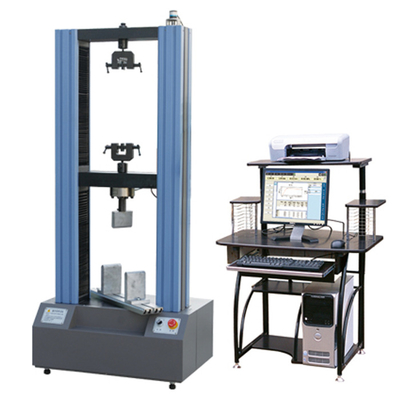

一、 Main uses: MWD-10A microcomputer controlled wood-based panel universal testing function meets GB / T17657-1999 test method for physical and chemical properties of wood-based panels. It is suitable for plane tensile strength, static bending strength and elastic modulus, screw holding force, internal bonding strength and bonding strength of various wood-based panels, and shear tests of wood-based panels. There are 1 set of random test accessories for each type of wood-based panels, with a total of 6 kinds of fixtures.
二、 Performance features: The new version of English menu control, special data processing software, man-machine dialogue intuitive, convenient. Real time display of material elastic modulus characteristic curve and parameters. The maximum test force, static bending strength, elastic modulus, surface bonding strength, internal bonding strength, surface bonding strength, tensile strength and other test results are automatically obtained. The limit position of displacement can be set. When the limit is reached, the protection will stop. It has the function of automatic reset and automatic return. The test speed range is 0.05-500mm/min. Multiple sensors can be calibrated to meet the requirements of different load material test and realize the multi-purpose of one machine.
Model
MWD-10A
MWD-50A
Maximum test force
 10kn
 50kn
Measurement range
2% - 100% of the maximum test force (optional 0.4% - 100%)
Accuracy of test force
Better than ± 1% of the indicated value (± 0.5% is a special choice)
Test speed
 0.05-500mm/min Stepless speed regulation within the range
Speed accuracy
Better than ±1%
Tensile space
600mm(Maximun up to 1200mm)
Dimensions
 660×420×1700mm
840×600×1850mm
Weight
 380kg
 550kg
Our Advantages
1. Competitive prices. As a manufacturer, it saves the middleman link and provides the cheapest price to customers directly
2. Professional Technical Team. Own technical team to give you best solution project to customer and on time after sales support.
3. Long time guarantee. High quality machine.
4.Delivery time is short.
