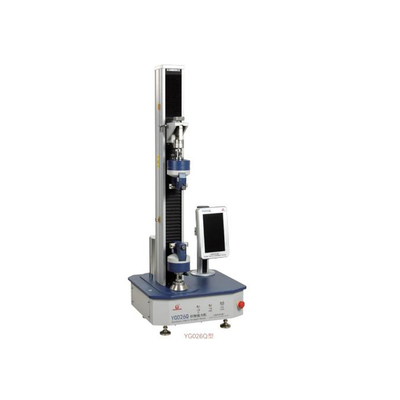

Scope of application | used in textile, printing and dyeing, and garment industries for breaking strength (strip method, grab method), elongation at break, tearing (single tongue, double tongue, trapezoid) strength, marble burst strength and elasticity Repeated stretching of materials (elastic deformation rate, recovery rate, plastic deformation), constant elongation, constant load, degree of seam detachment, seam slippage, seam strength of knitted fabrics, sewing thread, single yarn strength detection. It can also be used for strength and elongation testing of zippers, metals, paper, nonwovens, wires, and leather. |
Breaking strength (strip method) | GB/T3923.1 ISO13934.1 ASTM D5035 |
(Sampling method) | GB/T3923.2, ISO13934.2 ASTM D5034 |
Tear strength (tongue tear) | GB/T3917.2 ISO13937.2 ASTM D2261 |
(Trapezoidal tear) | GB/T3917.3 ASTM D5587 |
Suture slippage | GB/T13772.1/2/3 ISO13936.1/2 ASTM D434 |
Peel strength | FZ/T01085 ASTM D2724/3936 AATCC 136 FZ/T80007.1 FZ/T01010 FZ/T60011 |
Steel ball burst | GB/T19976 FZ/T01030 ISO3303-1 ASTM D3787 |
Elastic recovery | FZ/T70005 FZ/T70006 BS 4952 |
Single yarn strength | GB/T3916/14344 ISO2062 ASTM D 2256 Other standards: GB/T4689.6 GB/T13763 GB/T13773 GB/T14800 GB/T15788 GB/T16989 FZ/T01031 FZ/T20019 FZ/T60005 FZ/T60006 FZ/T70007 ISO 13935.1/2 ASTM D1683 ASTM D4964 ASTM D5733/5735 GB 8688 JIS L1096 |
technical parameter | 1. Form: constant velocity elongation (CRE) |
Load range and accuracy | A), 30Kg: test range (0～30000) CN accuracy < ±0.5% (optional)B), 50Kg: test range (0 ~ 500) N accuracy < ± 0.5% (optional); C), 100Kg: test range (0～1000) N accuracy < ±0.5% (optional); D), 150Kg: test range (0 ~ 1500) N accuracy < ±0.5% (optional); E), 300Kg: test range (0～3000) N accuracy < ±0.5% (optional); 3. Resolution of force value: 0.1N for sensors greater than or equal to 50KG, 1CN for sensors less than 50KG; |
Sampling frequency of force value | > 500HZ |
Optional force unit | CN (centi Newton), N (newton), KG (kilogram), lb (pound); |
Effective stroke: manual clamp | 650mm |
pneumatic clamp | 500mm |
Resolution of elongation indication | 0.01mm |
Clamping distance setting | 10～500mm |
Effective width of gripper | 100mm |
Tensile speed | 1～1000mm/min, no-load accuracy < ±2% |
Dimensions | 376×530×1345mm |
Weight | 146Kg |
Power supply | AC220V 50Hz 750W. |
Features | 1. Computer screen display, Chinese and English operating software, convenient level setting, direct selection of standards, self-contained evaluation system, can provide detailed in-test and post-test reports, and graphical analysis functions; 2. Industrial-grade 32-bit single-chip microcomputer control, American original 16 A/D converters, data transmission and processing speed are pleasant; strong anti-interference ability ensures that the instrument can run trouble-free for a long time; 3. Adopt imported servo motor control system, ball screw, precision guide rail, long service life and low noise. The motor has fast response speed, constant torque and wide speed range; no speed overshoot and uneven phenomenon; the clamping distance adjustment adopts digital calibration method, which is convenient and quick; the force value correction method is simple and clear; 4. The dynamic sampling frequency reaches more than 2000 times, so as to effectively ensure that the original peak value is not lost and make the tensile curve more accurate; 5. The relevant parameter settings are open to the outside world, so that the instrument can meet the test requirements of different standards; 6. The sensor, the holder and the frame are connected by standard interface, which is easy to replace; 7. Optional computer, printer and air pump; 8. It has various protection methods such as load-lifting, force value protection, limit protection, etc., which is safe and reliable; 9. There are multiple sets of optional functions and fixtures, which are convenient for multi-item testing (one machine for multiple purposes). |
