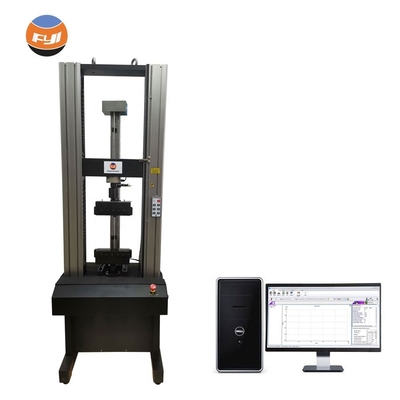

Geosynthetics Tensile Strength Tester DW1210
Application of Geosynthetics Tensile Strength Tester
DW1210 Geotextile Strength Tester is used to carry out the tensile strength test, tearing strength test, puncture resistance test, the tensile test for joints/seams and peel strength test, etc., on geosynthetics or geosynthetic-related products.
RELATED STANDARDS
|
STANDARDS |
Tensile |
ISO 10319, ISO 10321, ASTM D4595 |
|
Tearing |
ISO 9073.4, ASTM D4533 |
|
|
Puncture |
ISO 12236, ASTM D4833, ASTM D6241 |
|
|
Seam strength |
ASTM D4884 |
|
|
Burst |
ASTM D3787 |
Note: this Geosynthetics Tensile Strength Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
l Wide force range to meet various requirements for testing different materials;
l Double-spaces structure for tension and compression individually, avoiding frequent replacement of accessories to improving efficiency.
l Precise crosshead guidance via steel columns with carriages seated on ball bearings;
l Accurate positioning system with servo motor and ball screw lead support;
l Computer control main machine, easy to operate;
l Universal software for various material;
l Real time display data and curve of on-going test by computer;
l Multiple security protection functions of restrict position controlling, over-load and over-current protection and automatic stop, safe and reliable.
Clamps Pictures of Geosynthetics Tensile Strength Tester
Wide-width strip clamp
Narrow-width strip clamp Puncture clamp
KEY SPECIFICATION of Geosynthetics Tensile Strength Tester
|
l Max. testing force |
10KN, 20KN, 50KN, 100KN, 150KN, 200KN (Please specify before place order) |
|
l Measuring range of force |
2% ~100% of the full range |
|
l Measuring accuracy of force |
Prior to ±1% of the displayed value |
|
l Speed range |
0.5~500mm/min, adjustable |
|
l Speed accuracy |
±1% |
|
l Effective width of test space |
370mm |
|
l Max. stroke of beam |
1100mm |
|
l Max. tensile displacement |
800mm |
|
l Max. compression displacement |
740mm |
|
l Displacement accuracy |
±0.5% |
|
l Power supply |
AC220V 50Hz |
|
l Dimension |
775×500×1850mm (L×W×H) |
|
l Weight |
Approx. 500kg |
Installation in customer's lab Training in FYI showroom
1.Are your company a trading one or a factory?
Factory + trade (integration),30 years focusing on test instruments field,More than 10 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 30 days, If we have inventory, we can arrange shipment within 7 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Engineers available to sevice yarn dyeing machine overseas,after the warranty, the professional after-sale service team will provide perfect technical support on line,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. our products are widely recognized and trusted by users.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
