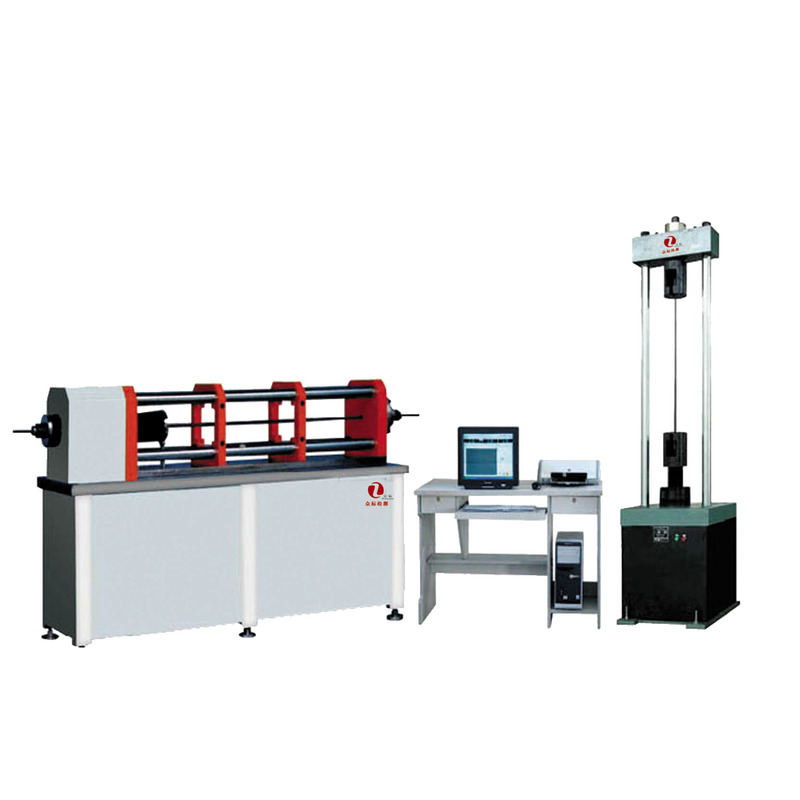

Steel Strand Stress Relaxation Tester Testing Machine / Equipment SDL

1.0 Sets
MOQ
Steel Strand Stress Relaxation Tester Testing Machine / Equipment SDL
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Shandong, China
Brand Name: ZBT
Model Number: SDL
Power: Electronic
Model: SDL
Maximum Loading Force(KN): 300 500 600
Accuracy: ±1%
Measurement Range Of Test Force: Full Travel 2%~100%
Deformation Measurement Range(mm): 0-10
Deformation Measurement Accuracy: ±0.5%
Extensometer Guage Length(mm): 600
Maximum Tensile Stroke(mm): 0~200
Pull Rod Speed(mm/min): 0.01~50
Tensile Space(mm): 800~1000(can Be Customerized)
Basic Infomation
Place of Origin: Shandong, China
Brand Name: ZBT
Model Number: SDL, SDL
Payment & Shipping Terms
Packaging Details: Export Fumigation packaging
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Products Description
Type of testing machine: microcomputer controlled strand relaxation tester Specification and model: SDL series (four column) Test force: 300kn-2000kn 1.Introduction
In the design process, the microcomputer controlled relaxation testing machine has absorbed the design concept and structural characteristics of famous relaxation testing machine companies such as Germany and Italy, and has been developed according to the relevant national standards for the relaxation test of rebar. It is specially used for the relaxation test of steel strand, galvanized steel wire and rebar. It is specially designed for the manufacturers and users of rebar. This series of testing machines are mainly used for the relaxation test of rebar, and can detect the relaxation strength of rebar and other metal wires under uniaxial tension. It can be widely used in quality inspection departments, construction units, steel wire and steel production enterprises. It is a new type of test equipment for modern building mechanics test. It meets the requirements of GB / t20065-2006 reinforced bar for prestressed concrete and GB / t10120-1996 test method for metal stress relaxation. The design of the main engine and auxiliary equipment of the testing machine is based on the advanced technology of Shimadzu of Japan, with beautiful appearance, convenient operation and stable and reliable performance. The computer system controls the servo motor rotation by the speed control system through the crowd standard controller. After the deceleration system decelerates, it drives the moving crossbeam forward and backward through the precision lead screw pair to complete the relaxation mechanical property test of the sample. It has no pollution, low noise and high efficiency. It has a very wide range of speed regulation and the moving distance of the beam, so it has a very broad application prospect. This machine is widely used in the inspection and analysis of metal materials in building materials, aerospace, machinery manufacturing and other industries.
2、 Host structure: The main engine is a four column or double column rigid frame, with vertical and horizontal models. The lead screw can adjust the drawing space, the loading speed can be set steplessly, and the test frame has no deformation for a long time. It adopts full digital closed-loop microcomputer servo control, high-performance servo motor and driver, combined with high-precision sensor, to achieve high-precision, wide range and multi-function servo control. In addition, it is equipped with cooling system to ensure long-time operation of the equipment. It can directly measure the deformation within the gauge distance of the sample, eliminate the influence of chuck slip, and have high test accuracy. The computer technology is fully used to preset various parameters of the testing machine, automatic measurement, control, data processing, drawing various curves and printing reports. The relaxation rate of 1000 hours can be automatically extrapolated through the test software.
Model
SDL-300
SDL-500/600
SDL-300W
SDL-500W/600
Maximum loading force(KN)
300KN
500KN/600KN
300KN
500KN600KN
Accuracy
                                                            ±1%
Measurement range of test force
                                          Full travel 2%~100%
Deformation measurement range(mm)
                                                           0-10
Deformation measurement accuracy
                                                          ±0.5%
Extensometer guage length(mm)
                                                           600
Maximum tensile stroke(mm)
                                                        0~200
Pull rod speed(mm/min)
                                                      0.01~50
Tensile space(mm)
                            800~1000(can be customerized)
Host structure
Vertical
Vertical
Horiziontal
Horiziontal
Power(KW)
4.5
7.5
4.5
7.5
Overall dimensions(mm)
950x750x2850
1100x980x3400
2100x850x1400
2100x900x1600
Our Advantages
1. Competitive prices. As a manufacturer, it saves the middleman link and provides the cheapest price to customers directly
2. Professional Technical Team. Own technical team to give you best solution project to customer and on time after sales support.
3. Long time guarantee. High quality machine.
4.Delivery time is short.
