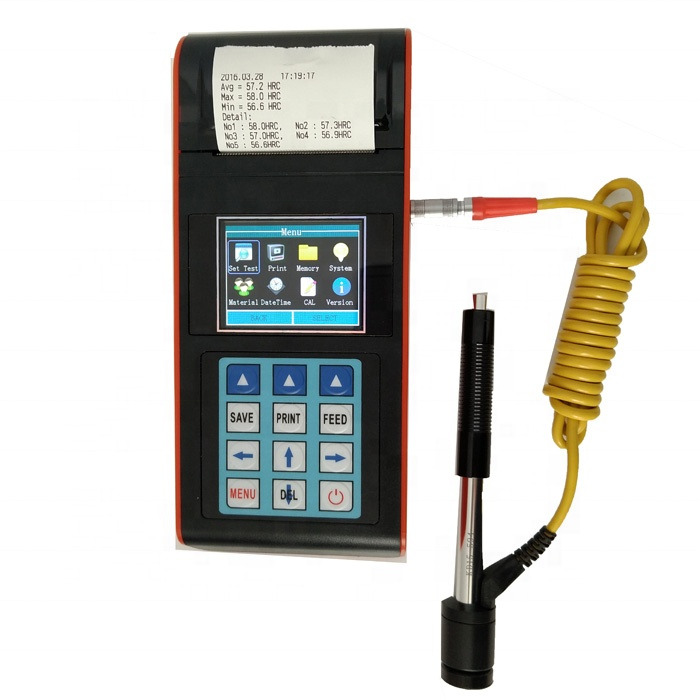

KH530 Portable Metal Hardness tester Durometer with printing function
TECHNICAL DATA
|
Measuring Materials |
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel |
|
Measuring Range |
HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
|
Indication Error |
±6HLD (D impact device) |
|
Measuring Direction |
360° |
|
Hardness Scale |
HL, HB, HRB, HRC, HRA, HV, HS |
|
Display |
320x240 true color TFT screen |
|
Data Memory |
Max 600 groups (relative to impact times 1~32 adjustable) |
|
Power |
Rechargeable li-battery |
|
Working Temperature |
-20°C~55°C |
|
Size |
210x85x45mm |
|
Weight |
0.6kg |
KH530 Portable Metal Hardness tester Durometer with printing function
MAIN FEATURE
*Built-in printer, can print testing results any time;
*Window menu style, ture color display;
*Two hardness scale dual-display in same time;
*Add customized material function, no limitation of measured materials;
*Test at any angle, even upside down, narrow space also available to use;
*Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;
*Seven impact devices are available for special application. Automatically identify the type of impact devices;
*User calibration function;
*Battery information indicates the rest capacity of the battery and the charge status;
*Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;
*Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;
*Excellent after-sale service system for high quality products-two years warranty and all life maintenance. Easy to operate;
*Support OEM Service, high price performance.
KH530 Portable Metal Hardness tester Durometer with printing function
STANDARD DELIVERY
|
ITEM |
QTY |
|
KH530 Host |
1 PC |
|
Standard D Impact Device |
1 PC |
|
Standard Calibration Block |
1 PC |
|
Standard Support Ring |
1 PC |
|
Brush |
1 PC |
|
USB Cable |
1 PC |
|
PC Software |
1 PC |
|
User Manual |
1 PC |
|
Instrument Case |
1 PC |
|
Warranty |
1 Years |
