Product introduction

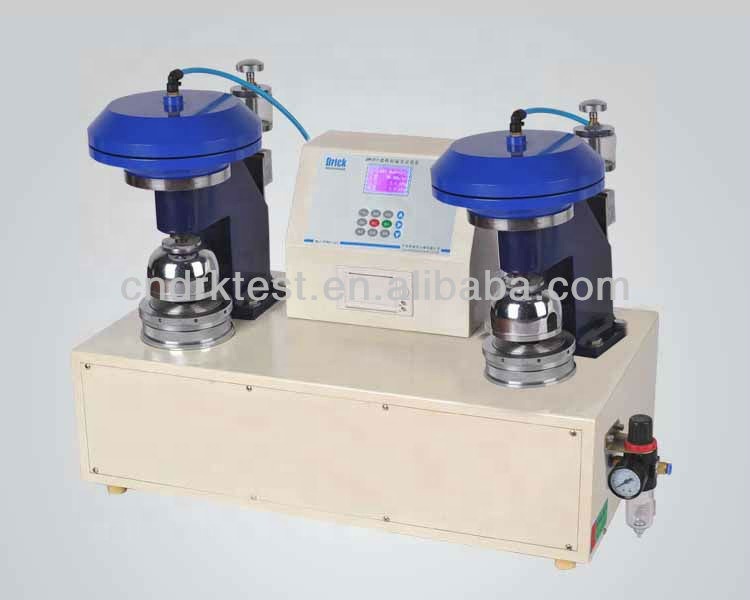

DRK109 Button type paper bursting strength tester is an international universal (Mullen) type instrument, which is the basic instrument for strength testing of paper and paperboard. It is simple in operation, reliable in performance and advanced in technology. It is essential ideal equipment for scientific research, paper manufacturers, packaging industry and quality inspection units.
Product Features
1. Microcomputer control technology, open structure, high degree of automation, simple and convenient operation, safe and reliable.
2. Automatic measurement and intelligent calculation function..
3. Configured by software that can provide automatic measurement, statistics, printing test results, and has the function of data preservation.
4. High-speed micro-printer, high speed printing, easy to use, low failure.
5. This product is an example of the modern design concept of mechatronics and configure with a hydraulic system, powerful function, compact structure, beautiful appearance, easy maintenance.
.
Product application
It can be used for the determination of various single-layer paper and paperboard not higher than 2000 kpa. It can also be used for the detection of non-paper products such as silk and cotton cloth.
Technical standard
ISO2759 Determination of the bursting strength of cardboard,
QB/T1057 Determination of the bursting strength of paper and cardboard;
GB1539 Determination of the bursting strength of cardboard;
GB/T 6545 Determination of the bursting strength of corrugated board;
GB/T 454 Determination of the bursting strength of paper.
Technical parameters
|
Measuring range |
10~2000kpa |
|
Clamping force between upper and lower chucks |
>430 kpa |
|
Pressure delivery speed |
95±5ml/ min |
|
Film resistance |
Strike height 10mm,20-40 kpa |
|
Machine accuracy |
1 level (Resolution:0.1 kpa) |
|
Indicative accuracy |
±0.5%F.S |
|
Seal ability of Hydraulic System |
At the upper limit of measurement,1 Minute pressure drop <10%Pmax |
|
Power Supply |
AC220V±5% 50Hz |
|
Dimensions |
530×360×550mm |
|
Weight |
70kg |
7*24 h service, you can contact us at any time.
♦Continuous innovation and professional and sophisticated product R & D team and complete processing facilities are available.
♦Obtained the patent certificate of the State Intellectual Property Office for each model.
Solid wooden box packaging, escort your product transportation.
Ensure that the product is not damaged during transportation.
