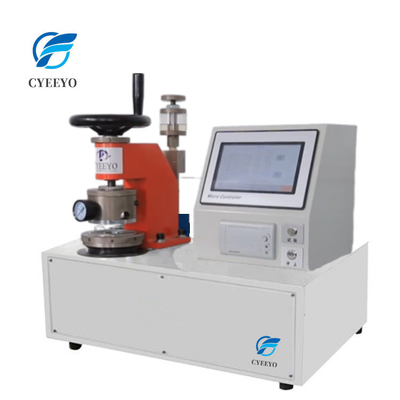

Pneumatic Bursting Strength Tester is a new machine developed by our company.
Based on singlechip measurement and control means to make the inspection control
and processing data digital and Microcomputerized.With high precision instrument
sensors make it has high Precision.Clamping system is manually operated, easy to operate.With
data processing, the data can be directly obtained results, and can automatically reset.It has the
advantage of easy operation, easy adjustment, stable performance,which make it become the
essential instrument for papermaking ,packing, inspection and research
1.Board-new mainboard design, with the latest technology, CPU is equipped with
32-bit ARM processor, improving the instrument's processing speed and calculating more accurately and quickly
2.5-inch TFT true color LCD touch screen, more user-friendly operating interface, a
new user can be skilled in operation within 1 minute.
3.Increase data cache for easier backup, access, compassion of historical data.
4.Micro-printer, high print speed, easy to use, low failure
5.Mechanical and electrical integration of modern design, compact structure,
excellent appearance, easy maintenance
ISO 2759 GB/T 1539 ISO 2758 GB/T 454
Application
It is applicable to the bursting strength tests of carton packaging industry and departments of quality inspection and commercial inspection
|
Item |
Parameter |
Unit |
|
|
Measuring Range |
250~5600 |
kPa
|
|
|
Indicating Accuracy |
±0.5% |
F.S |
|
|
Compression Rate |
170±15 |
ml/min
|
|
|
Clamp Pressure |
≥690 |
kPa |
|
|
Sampler Diameter |
up loop |
31.5±0.05 |
mm |
|
down loop |
31.5±0.05 |
mm |
|
|
Display |
Touch Screen |
--- |
|
|
Memory |
Test 20 single test data (including the curve data) after shutdown is not stored.16000 sets of statistical data, shutdown is not lost. |
--- |
|
|
Communication Output |
USB2.0 or standard RS232 interface |
--- |
|
|
Power Supply |
AC (100-240),(50-60)Hz,2A |
--- |
|
|
External Dimension |
620(L)×420(W)×680(H) |
mm |
|
|
Gross Weight |
≤67.0 |
kg
|
|
