YT-L30/300/500 Automatic Tensile Strength Measuring Paper Tensile Strength Tester Tensile Strength Meter For Sale YT-L Series

1 Unit
MOQ
YT-L30/300/500 Automatic Tensile Strength Measuring Paper Tensile Strength Tester Tensile Strength Meter For Sale YT-L Series
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM
Place Of Origin: Zhejiang, China
Brand Name: Yante
Model Number: YT-L Series
Power: Electronic
Standard: ISO 1924
Warranty Period: One Year
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Yante
Model Number: YT-L Series
Payment & Shipping Terms
Packaging Details: Ply-wooden cases, inner plastic films wrapped
Product Description
Product Overview

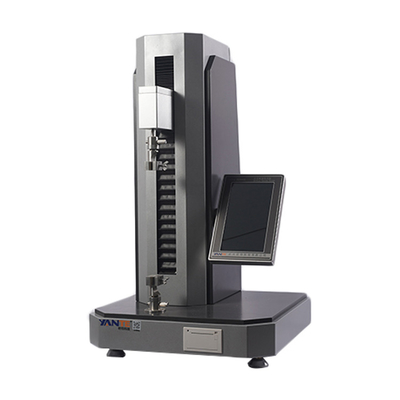

Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Features At A Glance

Closed-loop servo stepping motor, ball screw and three guide shafts provide stable and accurate transmission. A 10-inch color LCD touch screen is used to display the stretching curve in real time. The ARM processor and 24-bit analog-to-digital converter improve the response speed of the instrument and ensure the real-time performance of the measurement. Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued. Features of automatic reset, data memory, overload protection and fault self-diagnosis. Cooperate with computer software for communication (purchased separately).
Details Images
Application Range
Paper, cardboard; aluminum foil, aluminum-plastic tape; Plastic film and other non-metallic materials. Non-woven fabric
Execute Standard
GB/T 12914，GB/T 2792，GB/T 24218.3，GB/T 1040，TAPPI T 494
Product Function
Measure tensile and tensile strength Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus Measure the peel strength of adhesive tape
Sales And Service Network
Product Paramenters
No.
Parameter item
Technical index
1
Power Supply
AC(100～240)V，(50/60)Hz 100W
2
Working Environment
Temperature(10~35)℃, Humidity≤ 85％
3
Display
10 inch color touch screen
4
Measuring range
(0.15～30)N /(1～300)N /(3～1000)N
5
Display resolution
0.001N(L30A) / 0.01N(L300A) / 0.01N(L1000A)
6
Indication error
±0.5%(Range5%～100%)
7
Work stroke
350mm / 900mm(customize)
8
Sample width
15mm(25mm，50mmOptional)
9
Stretching speed
(1～500)mm/min(Can be adjusted arbitrarily)
10
Print
Built-in thermal printer
11
Communication Interface
RS232(Default) (USB, WIFI optional)
12
Dimension
550 ×530 ×900 mm
13
Net Weight
95kg around
