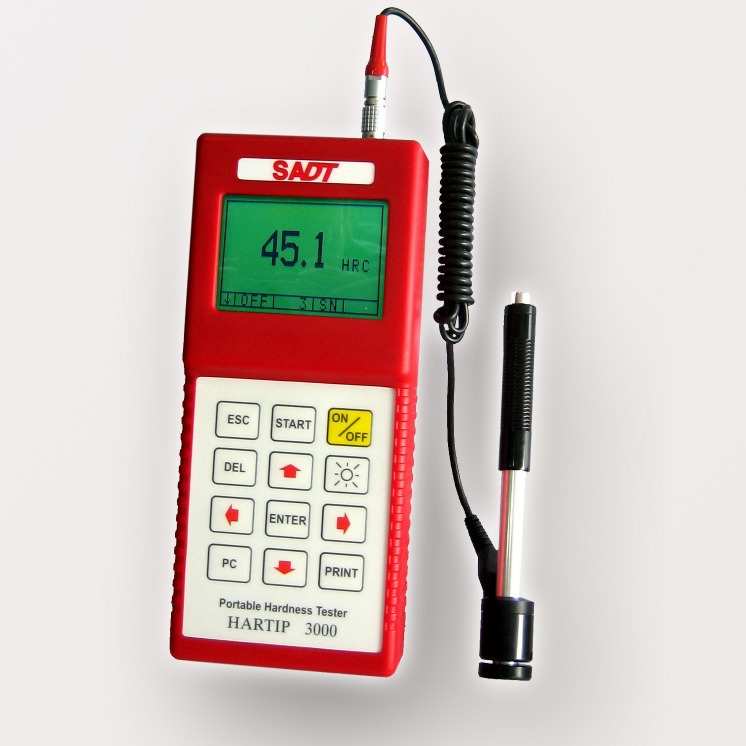

HARTIP3000 Portable Metal Hardness Tester With 7 Different Probes
HARTIP3000 is an advanced hand-held digital metal hardness tester with characters of high accuracy, wide measuring range and easy operation. It is suitable for testing the hardness of all metals especially on site for large structure or assembled components, which is widely used in the industry of power, petrochemistry, air space, vehicle, machine and so on.
Specifications
|
Principle |
Leeb Hardness Measurement |
|
Accuracy |
±0.5% @ HL=800 / ±4HL |
|
Display |
Large Graphic LCD With EL Backlight |
|
Hardness Scale |
HL / HRC / HRB / HB / HV / HS |
|
Measuring Range |
HL200-960/ HRC19-70/ HRB13-109/ HB20-655/ HV80-1027 / HS31.9-102.8 |
|
Probe |
D (Standard) DC/D+15/C/G/E/DL (Optional) |
|
Materials |
9 Common Metal Materials |
|
Memory |
960 Data In 8 Blocks, Can Be Saved And Re-Readable |
|
Statistics Function |
Average / Max. / Min. /S. Value |
|
Indicator |
Low Battery |
|
Communication |
RS232 / USB To PC For Transfer Ring Data |
|
|
RS232 / USB To Micro Printer |
|
Power Supply |
1.5V AA Battery X 4 |
|
Working Environment |
-10~+45ºC |
|
Dimension (Mm) |
195x84x38 |
|
Net Weight (G) |
550 |
|
Standards |
Conforming To ASTM A956, DIN 50156, GB/T 17394-1998 |
Standard Package
HARTIP 3000 main unit 1
Probe type D 1
Small support ring 1
Test block D 1
Cleaning brush 1
Operation manual 1
Test Certificate 1
Carrying case 1
