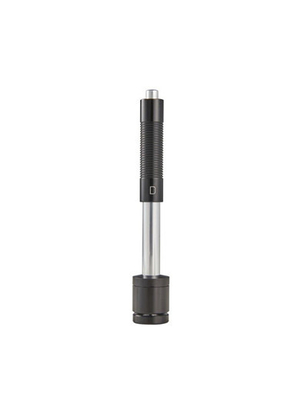

Impact D General test Hardness Tester Probe Device
|
Material |
Method |
Impact device |
|
D |
||
|
Steel and cast steel |
HRC |
20~68.5 |
|
HRB |
38.4~99.6 |
|
|
HRA |
59.1~85.8 |
|
|
HB |
127~651 |
|
|
HV |
83~976 |
|
|
HS |
32.2~99.5 |
|
|
Cold work tool steel |
HRC |
20.4~67.1 |
|
HV |
80~898 |
|
|
Stainless steel |
HRB |
46.5~101.7 |
|
HB |
85~655 |
|
|
HV |
85~802 |
|
|
Grey cast iron |
HRC |
|
|
HB |
93~334 |
|
|
HV |
|
|
|
Nodular cast iron |
HRC |
|
|
HB |
131~387 |
|
|
HV |
|
|
|
Cast aluminium alloys |
HB |
19~164 |
|
HRB |
23.8~84.6 |
|
|
BRASS(copper-zinc alloys) |
HB |
40~173 |
|
HRB |
13.5~95.3 |
|
|
BRONZE(copper-aluminium/tin alloys) |
HB |
60~290 |
|
Wrought copper alloys |
HB |
45~315 |
|
Type of impact device |
D |
|
Impacting energy Mass of impact body |
11mJ 5.5g/7.2g |
|
Test tip hardness: Dia. Test tip: Material of test tip: |
1600HV 3mm Tungsten carbide |
|
Impact device diameter: Impact device length: Impact device weight: |
20mm 86(147)/ 75mm 50g |
|
Max. hardness of sample |
940HV |
|
Mean roughness value of sample surface Ra: |
1.6μm |
|
Min. weight of sample: Measure directly Need support firmly Need coupling tightly |
>5kg 2~5kg 0.05~2kg |
|
Min. thickness of sample Coupling tightly Min. layer thickness for surface hardening |
5mm ≥0.8mm |
|
Size of tip indentation |
||
|
Hardness 300HV |
Indentation diameter Depth of indentation |
0.54mm 24μm |
|
Hardness 600HV |
Indentation diameter Depth of indentation |
0.54mm 17μm |
|
Hardness 800HV |
Indentation diameter Depth of indentation |
0.35mm 10μm |
