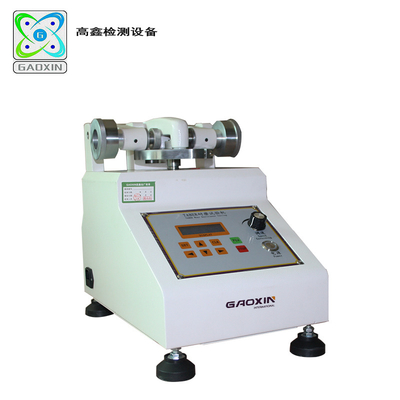

Leather TABER Abrasion Tester For Lab rubber/leather taber abrasion tester rubber testing machine Rubber Testing Equipment
TABER Abrasion Tester For Lab rubber and leather abrasion tester testing machine Resistance Tester
DIN Test Standard Taber Abrasion Tester , for Fabrics Leather Coating Material Plastics abrasion Test
Description
The TABER abrasion resistance tester is used to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber.
The method is using the standard size of specimen, then using the regulated models of grinding wheel with loading weight to rub the specimen.
Remove the specimen after rotation to reach a centain number,
and then observe the damage of the specimen or compare the weight with the previous materials.
Test Criteria: DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470
Specifications
|
Model |
GX-5027 |
|
Specimen |
outside dia. Ø108mm; inside dia.Ø 8mm, 3mm(D) |
|
Grinding Wheel |
Ø2``(max.52mm)1/2``(W) |
|
Model of grinding wheel for different specimen |
CS17,CS10 for coating material CS17,H18,H22 for plastics CS32,CS33 plywood H18,H22,CS17 for fabrics |
|
Space Between Grinding Wheel |
63.5mm |
|
Grinding Wheel and Plate`s Space |
26±0.5 mm |
|
Rotating Speed |
60rpm or 72rpm |
|
Loading weight |
250g,500g, 1000g |
|
Counter |
LED,0~999999 |
|
Distance Between Specimen and Hose |
3mm |
|
Power |
AC220V,50HZ,3A |
Dongguan Gaoxin Testing Equipment Co., Ltd.
Have independent production base plant.
Strong design and manufacturing capabilities.
Strong technical force and high-quality after-sales service.
Efficient after-sales service team.
A number of certification qualifications.
Factory outlets, so that customers benefit the most.
2003 Gaoxin was established in Dongguan.
2004 Started production in Xinhe Industry Park.
2005 Received manufacturing license from the Bureau of Standards,Metrology and Inspection.
Footwear, leather testing equipment series are successfully developed and into production.
2006 Certified by the authorization and the audit of ISO 9001 quality system.
Universal testing machine are successfully developed.
Set up R & D department.
2007 Certified by the authorization and the audit of ISO 14001 environment system.
Temperature and humidity test chamber into production.
2008 Nanchang branch was established.
The establishment of the export division, products enter the international market.
Paper products testing equipment series into production.
2009 Shenzhen branch was established.
Gaoxin was awarded "Good Faith Enterprise" qualification.
Awarded "China Famous Brand" qualification.
2010 Gaoxin Industries (HongKong) Co., Limited registered successfully.
Products have CE certification, successfully entered the European market.
2011 Certified as "High-tech Enterprises" by Technology Hall in Guangdong.
Chengdu branch was established.
2012 Shanghai branch was established.
Company started the 2rd production plant.
Four products successfully received the national patent.
2013 Products obtained CMC, SGS certification.
Battery testing machine series successfully received the national patent.
2014 Vietnam branch was established.
Changsha branch was established.
Alibaba orange power gymnastics training camp base.
2015 Received adward of annual outstanding instrument enterprises.
Battery testing machine series products identified as high-tech in Guangdong Province.
2016 Received awards Enterprise Innovation Prize.
2017 The company has annual sales of 100 million.
Battery testing equipment market share of 60%
